01203 (Heat Exchangers)

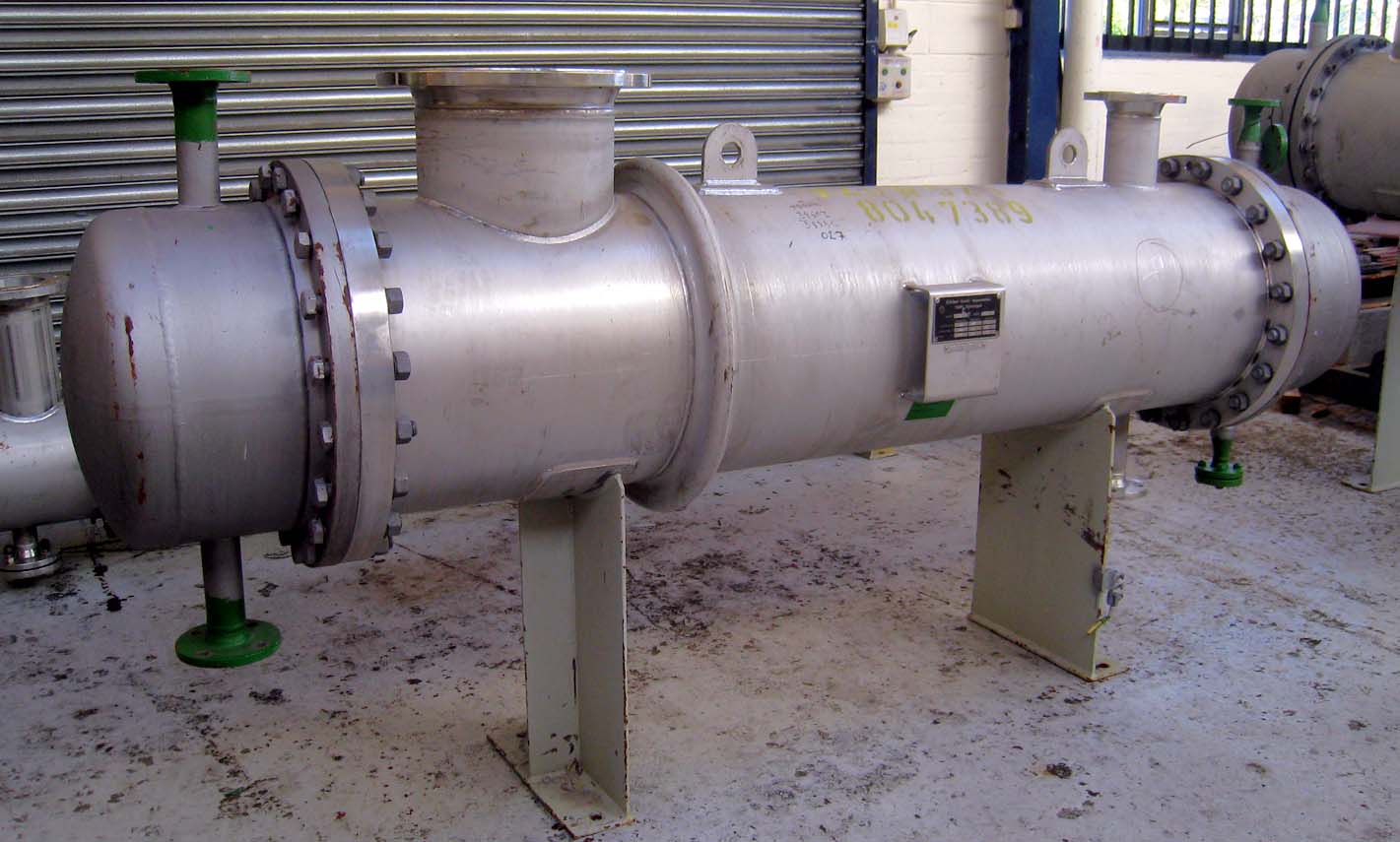

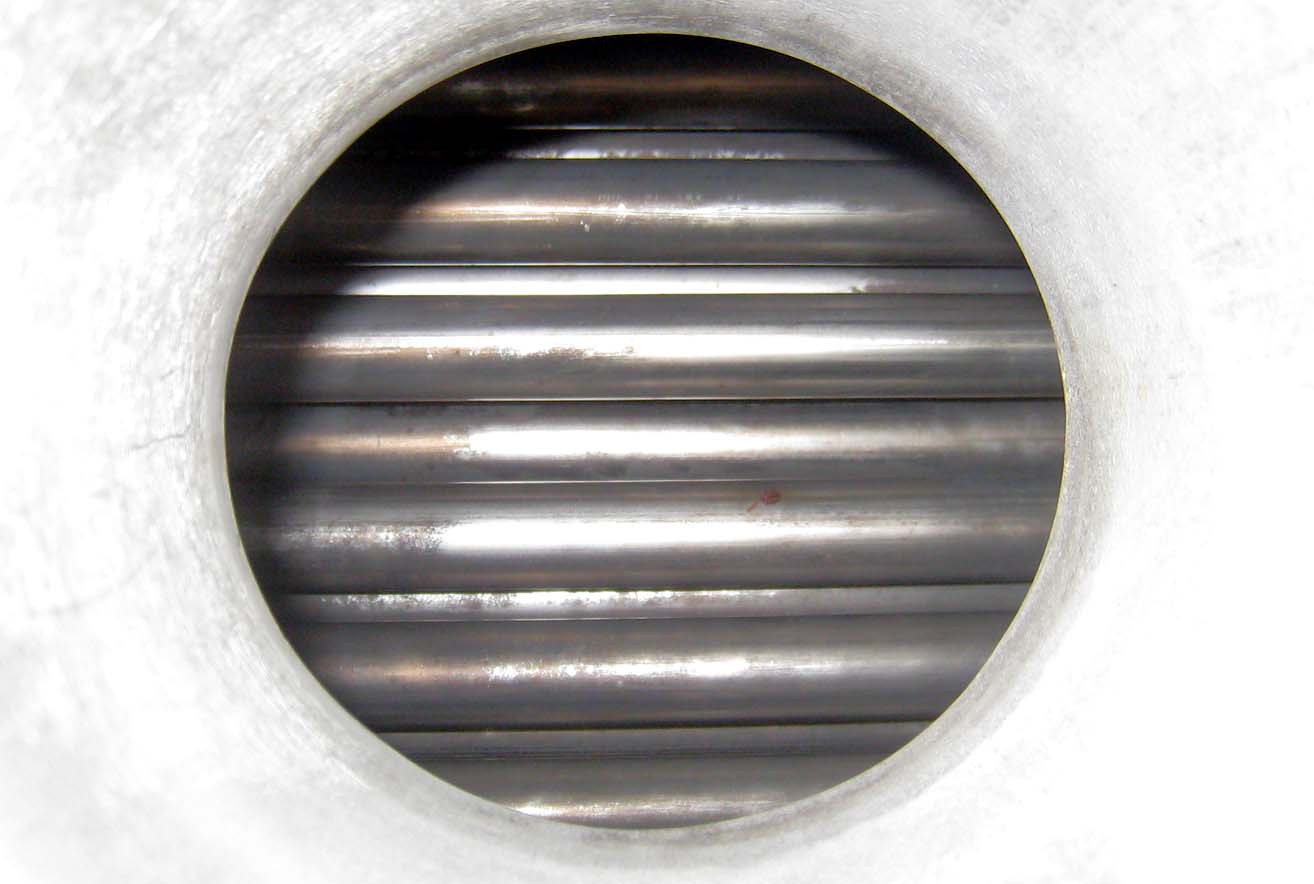

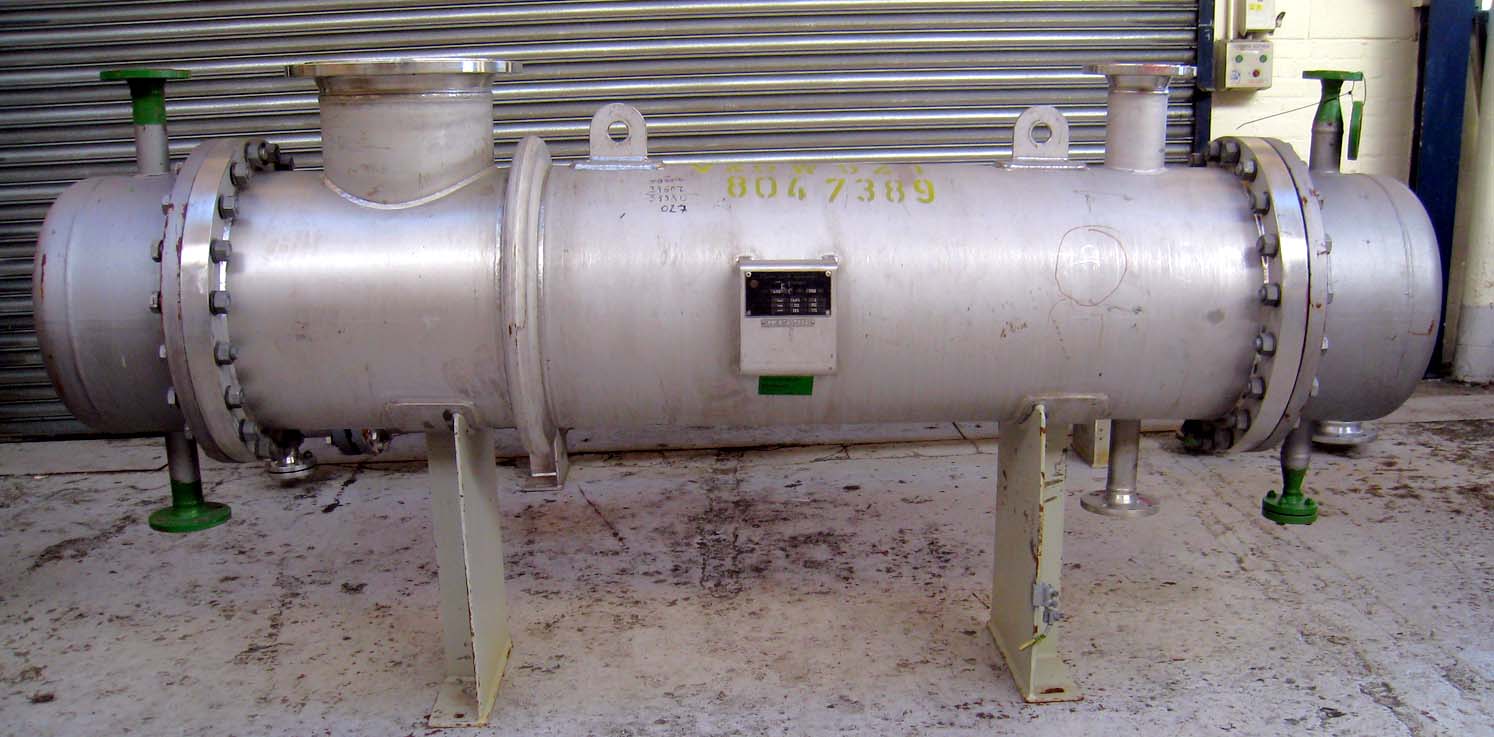

Description:Product: Used Heat Exchangers
Size / surface area: 11sq.m
Material: Shell & Tubes: Stainless steel 316Ti (1.4571) Headers: Carbon Steel (1,0425)
Temperature: Shell 200°C, Tubes 200°C
Pressure: Tubes 6.0 bar, Shell 4.0 / -1 bar
Dimensions: Approximately 0.516m O/diameter (Shell), Total length 2.7m L (including headers)
Manufactured by Kleiser Apparatebau Gmbh & Co.KG
Photos: 3x
Click on photo to Magnify
Contact EPE for more info: T +44-(0)1325-353539
| Specification | |
|---|---|
| Material: | Stainless steel 316Ti (1,4571) & Carbon Steel (1,0425) |
| Pressure (bar): | Tubes 6.0 Shell 4.0 / -1 |
| Size (Sq.m): | 11 |
| Type: | Shell & Tube |
| More Info: | Click here for more info |
