01202 (Heat Exchangers)
Description:Product: Used Heat Exchangers
Size / surface area: 3sq.m
Material: Shell, Tubes & headers: Stainless steel 316Ti (1.4571)
Temperature: Shell 120°C, Tubes 120°C
Pressure: Tubes 6.0 bar, Shell 4.0 bar

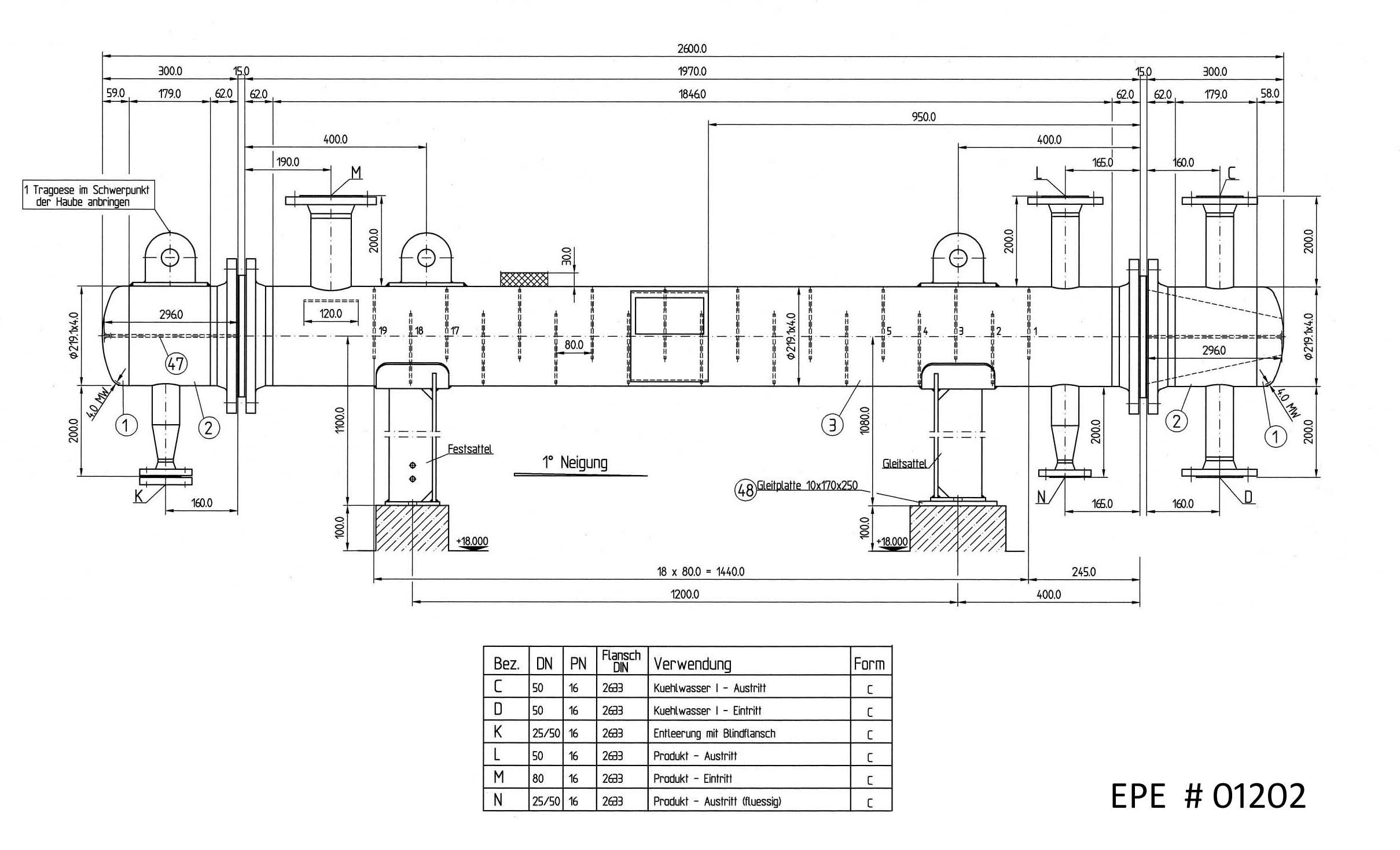

Dimensions: Approximately 227mm O/diameter (Shell), Total length 2.6m L (including headers)
Manufactured by Kleiser Apparatebau Gmbh & Co.KG

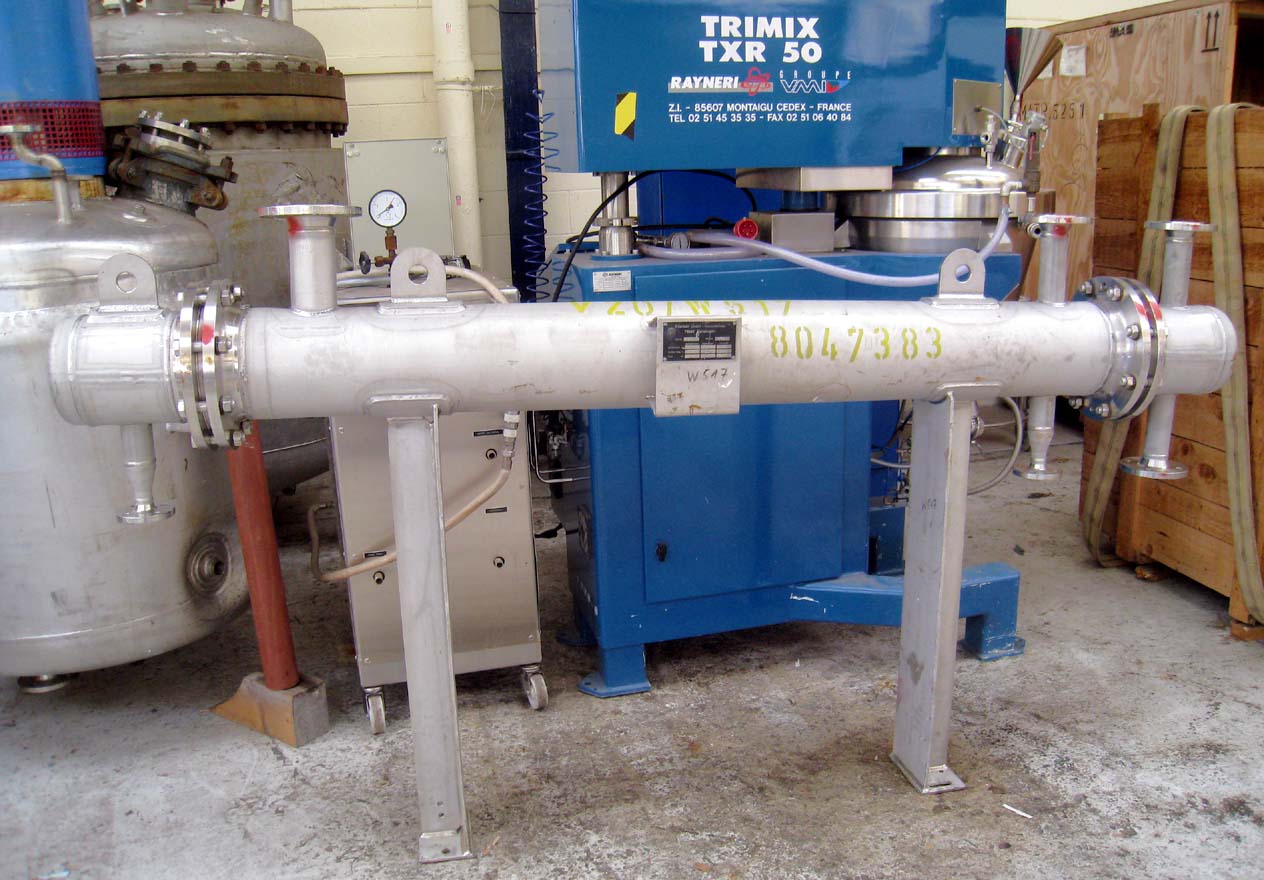

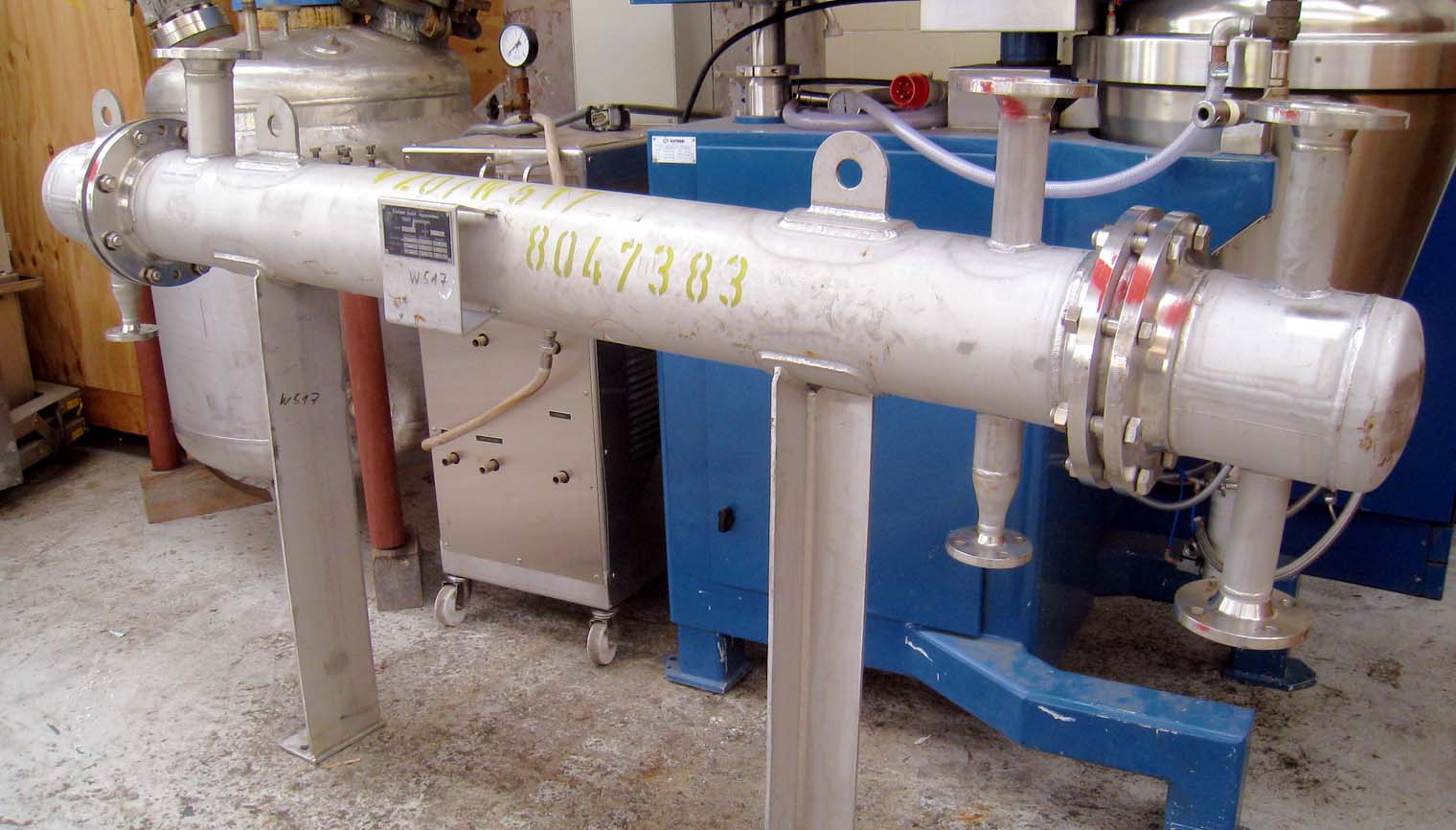

Photos: 2x
Click on photo to Magnify
Contact EPE for more info: T +44-(0)1325-353539
| Specification | |
|---|---|
| Material: | Stainless steel 316Ti (1,4571) |
| Pressure (bar): | Tubes 6.0 Shell 4.0 / -1 |
| Size (Sq.m): | 3 |
| Type: | Shell & Tube |
| More Info: | Click here for more info |
