01199 (Heat Exchangers)
Description:Product: Used Heat Exchangers
Size / surface area: 16sq.m
Material: Shell & headers: Stainless steel 316Ti (1.4571) Tubes: Stainless steel 316L (1.4404)
Temperature: Shell 100°C, Tubes 100°C
Pressure: Tubes 10.0 bar, Shell 6.0 bar
Dimensions: Approximately 324mm O/diameter (Shell), Total length 3.864m L (including headers)
Manufactured by Kleiser GmbH & Co. Kg

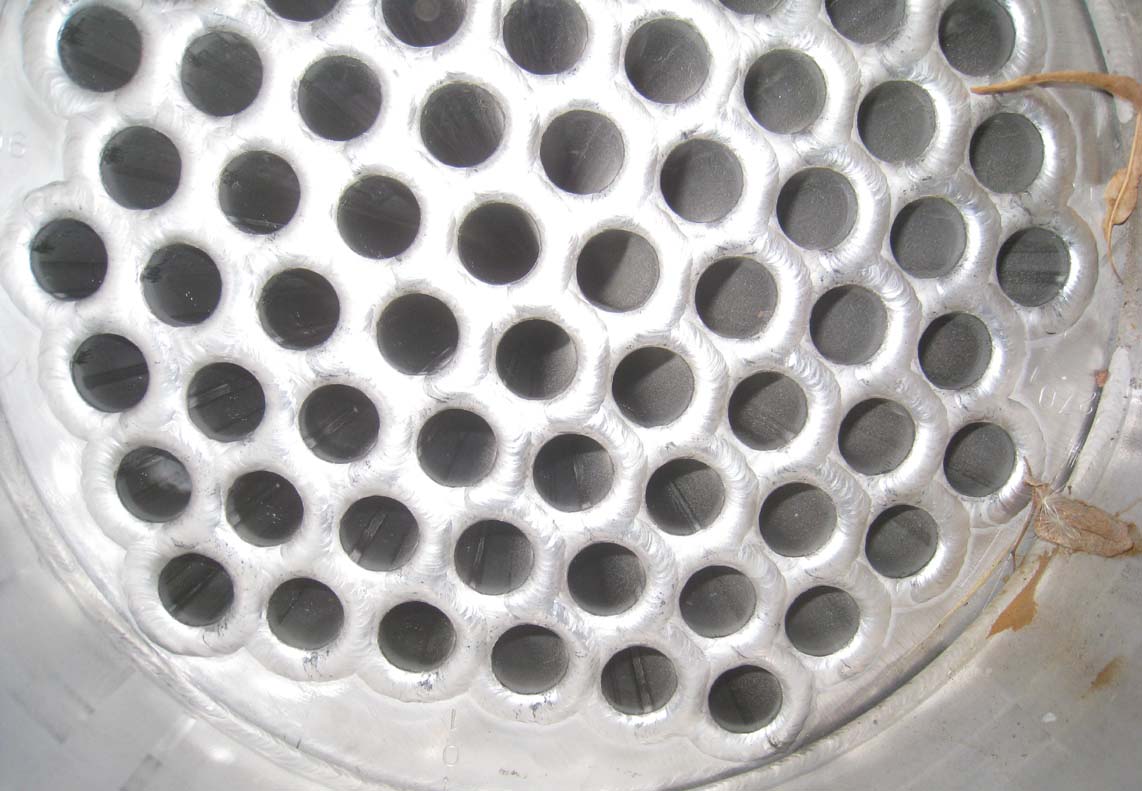

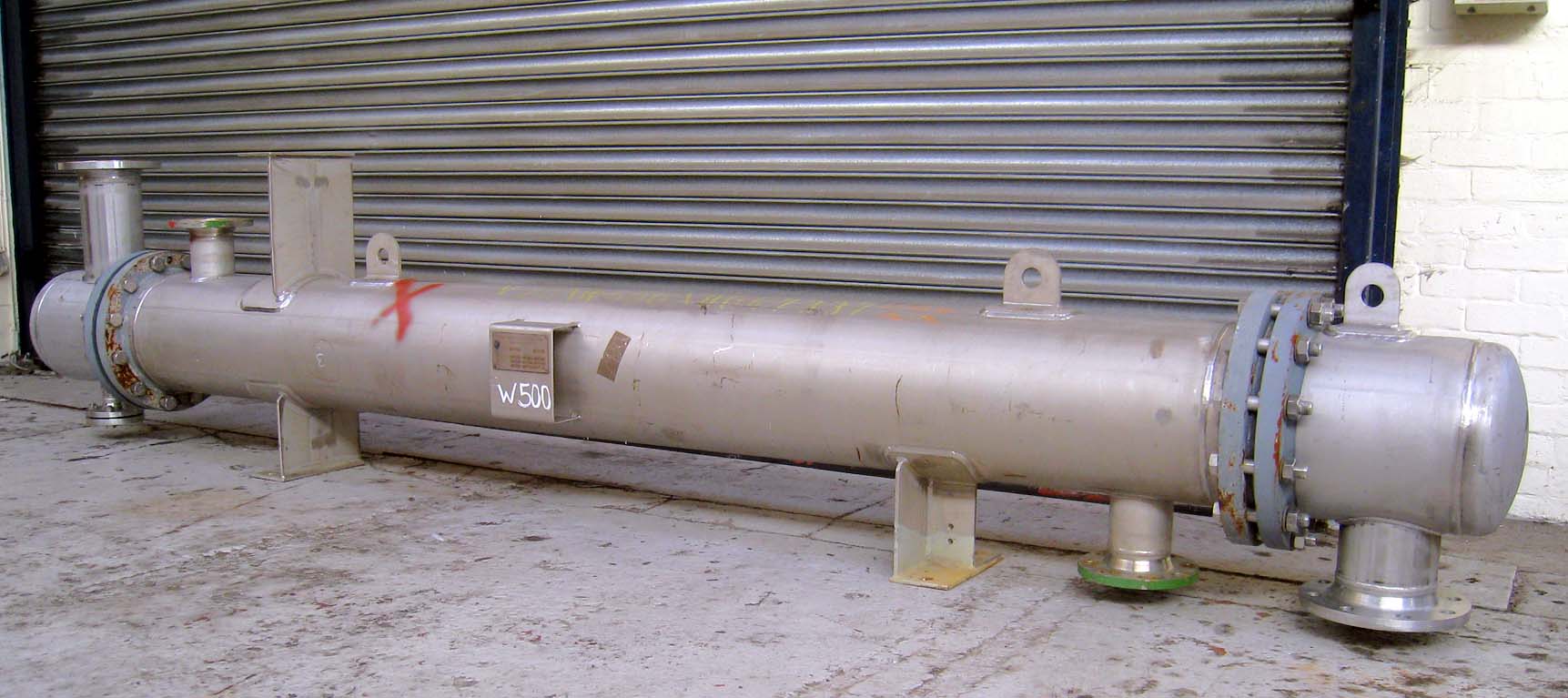

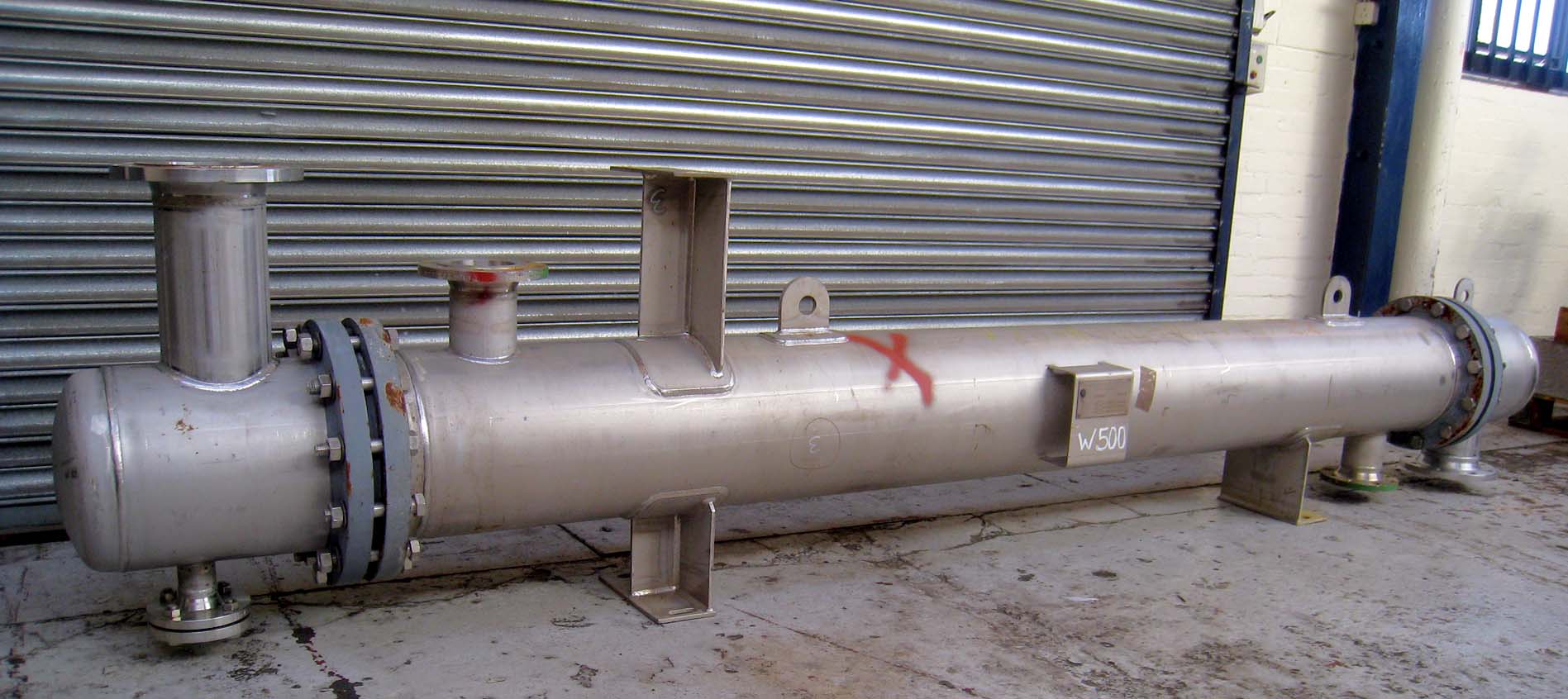

Photos: 3x
Click on photo to Magnify
Contact EPE for more info: T +44-(0)1325-353539
| Specification | |
|---|---|
| Material: | Stainless steel 316Ti (1.4571) & 316L (1.4404) |
| Pressure (bar): | Tubes 10.0 Shell 6.0 |
| Size (Sq.m): | 16 |
| Type: | Shell & Tube |
| More Info: | Click here for more info |
