01143 (Heat Exchangers)

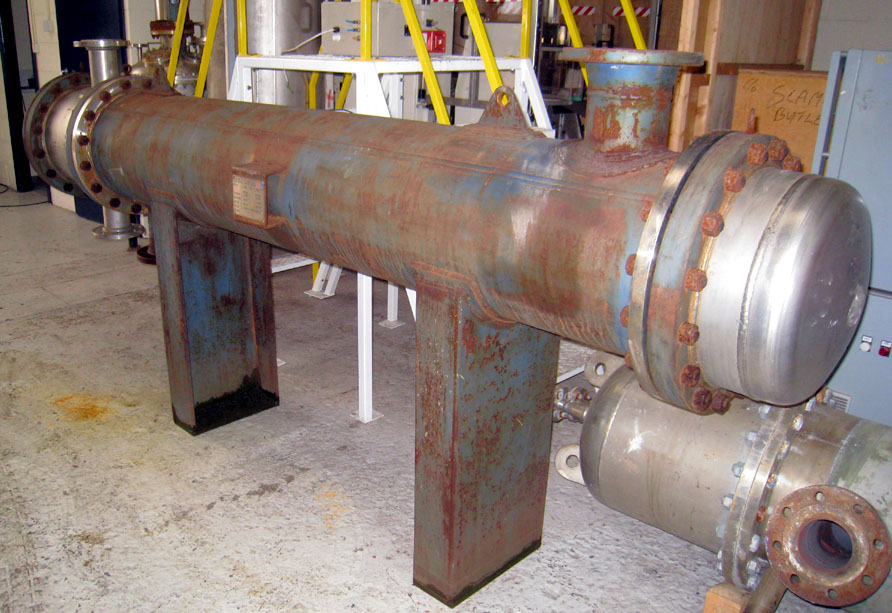

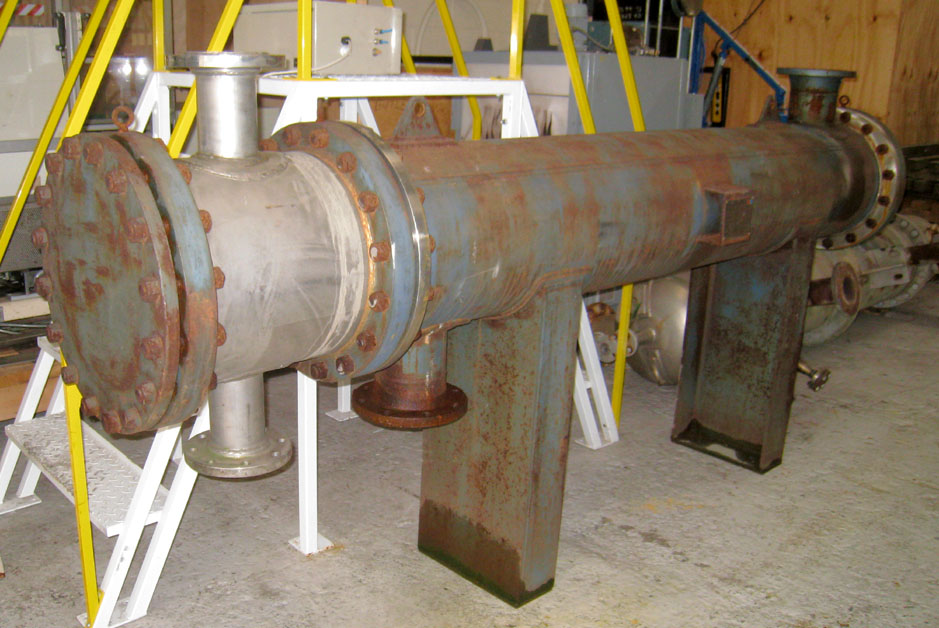

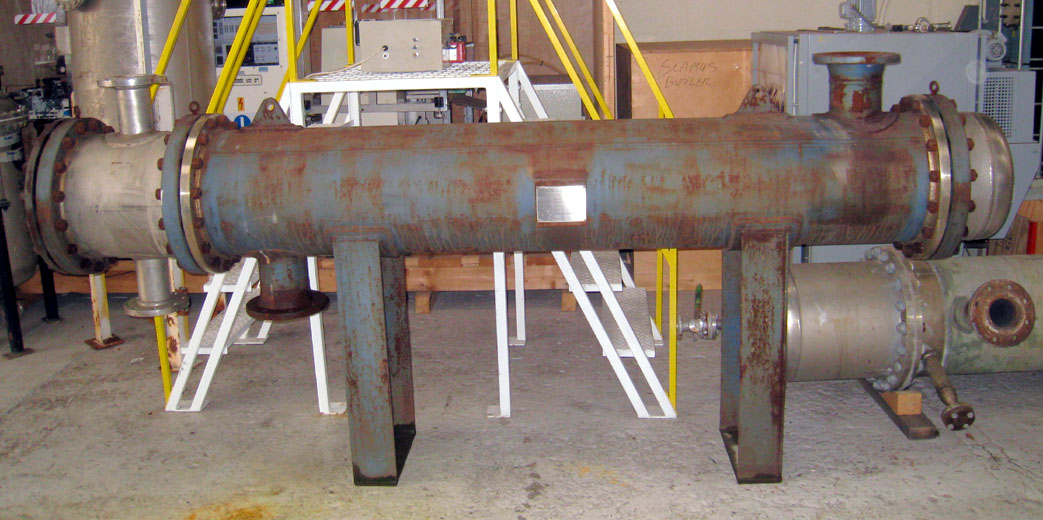

Description:Shell: 2,4m L x 0.43m O/diameter, Total length 3.2m L (inc. headers) 2-pass tube side (to be confirmed), manufactured by Graham Hart Process technology Ltd. Wetted parts: Hastelloy C267, Jacket: carbon steel. Temperature Tubes 205deg.C, Shell 260deg.C - 3x photos.
| Specification | |
|---|---|
| Material: | Hastelloy (Wetted parts) |
| Pressure (bar): | 10.4 both sides |
| Size (Sq.m): | 28,5 |
| Type: | Shell & Tube |
| More Info: | Under offer / Reserved |
