00819 (Heat Exchangers)

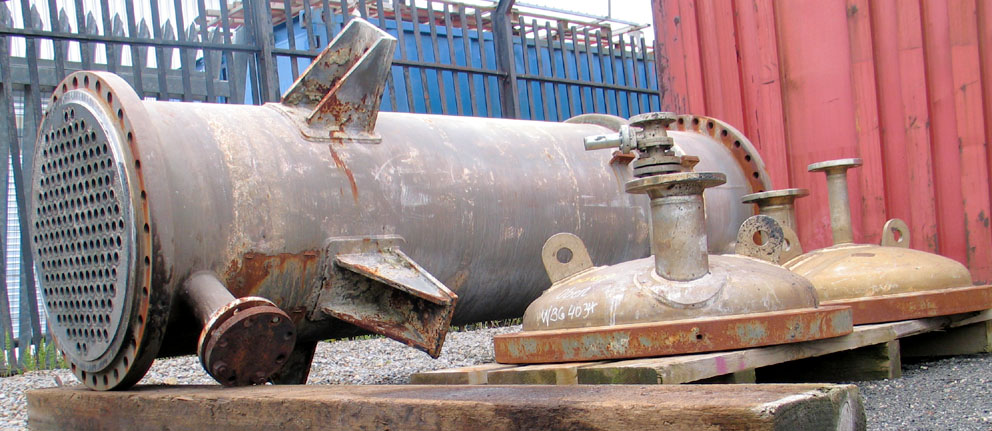

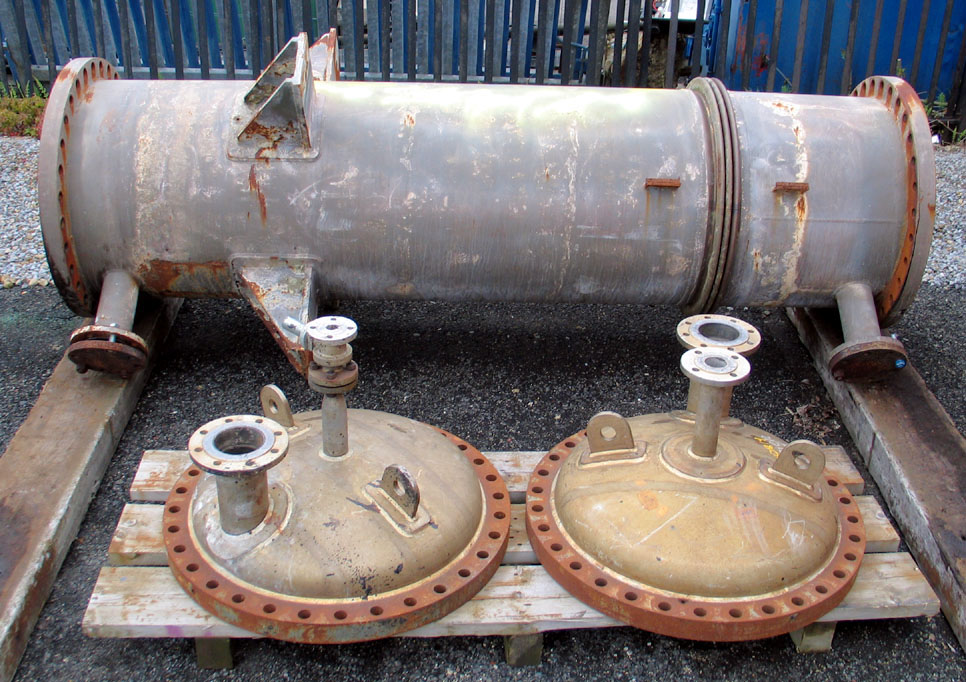

Description:Shell: 2,7m L x 0.72m O/diameter, Total length 3.66m L (inc. headers) 175 tubes x 30mm diameter . Manufactured by Struyf NV. Wetted parts: Stainless steel 316Ti, Jacket: Carbon steel.
| Specification | |
|---|---|
| Material: | Stainless Steel 316Ti (1.4571) |
| Pressure (bar): | Tubes 5.0 /-1 Shell 15.0 |
| Size (Sq.m): | 44.5 |
| Type: | Shell & Tube |
| More Info: | SOLD |
